IRSQ Respac Stretcher
AFX205001-PN-403 AFX205001-IRSQ-Rescue-Stretcher-TDS-3

IRSQ Respac Stretcher

AFX205001-IRSQ-Rescue-Stretcher-TDS AFX205001-UIM DOC-AFX205001

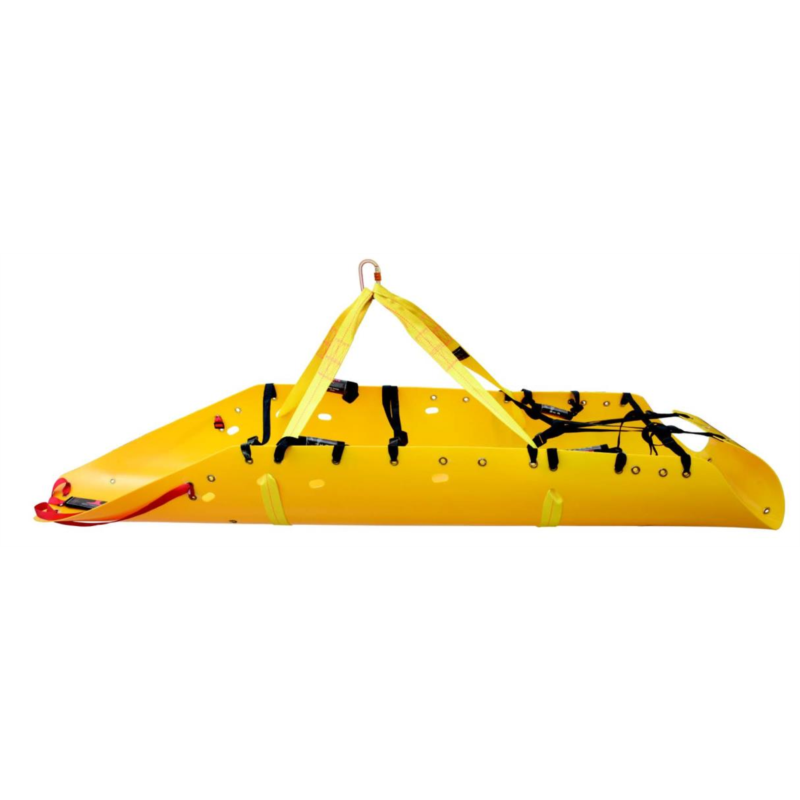

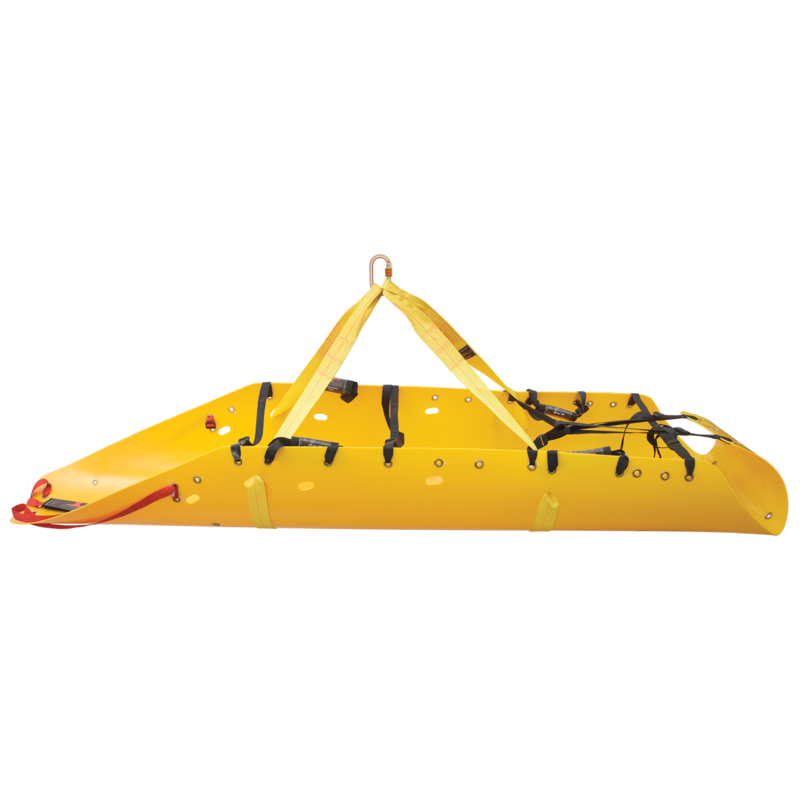

The KSTRONG AFX205001 IRSQ Rescue Stretcher, part of the IRSQ Emergency Rescue Series, is engineered for demanding rescue operations.

Its backpackable design allows rapid deployment and portability, making it ideal for confined spaces, heights, and rugged terrains.

With both vertical and horizontal lifting capabilities and color-coded strap indicators for patient head positioning, it ensures fast and secure handling.

Supplied with a dedicated carry bag, fastening straps, and instruction labels, it delivers comprehensive operational and maintenance guidance.

Trusted by professionals in firefighting, industrial safety, and tactical rescue sectors worldwide.

Brand KSTRONG UNRIVALED SAFETY
NSN
P/NAFX205001

Specifications & Material

  • Main Body: High-strength HDPE Polymer Sheet
  • Handles: Nylon grip handles (2 per longitudinal side)
  • Dimensions: Length 2440mm × Width 918mm
  • Lifting Belts: Polyester; Max breaking strength 3000kg
  • Total Weight with bag: Approx. 8kg (Stretcher only 5.5kg)
  • Eyelets: Brass
  • Rope: 9m Kernmantle, Dia. 10mm
  • User Load Capacity: Up to 200kg

Certification & Safety

  • Conforms to EN1865 standard
  • Must be inspected before and after each mission
  • Not designed for spinal immobilization — use spinal board as needed

Design Features

  • Suitable for both vertical and horizontal lifting
  • Color-coded strap indicates head position of patient
  • Supplied with carry bag, lifting ropes, anchorage slings, and usage tags
  • Instructional labels include inspection grid and maintenance tips
  • Easily rolled and stored in included backpack after use

Application Scenarios

  • Confined space, high-altitude, marine, mountainous and industrial rescues
  • Compatible with spinal immobilization boards and support systems
